1PCS 5CH 512 & RDM decoder DC12V 24V 48V 20.5A RGBCW LED Controller Digital Display Constant Voltage RGB+CCT Light Strip(D5-E)
Product details
| Management number | 211082914 | Release Date | 2026/04/04 | List Price | $47.32 | Model Number | 211082914 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

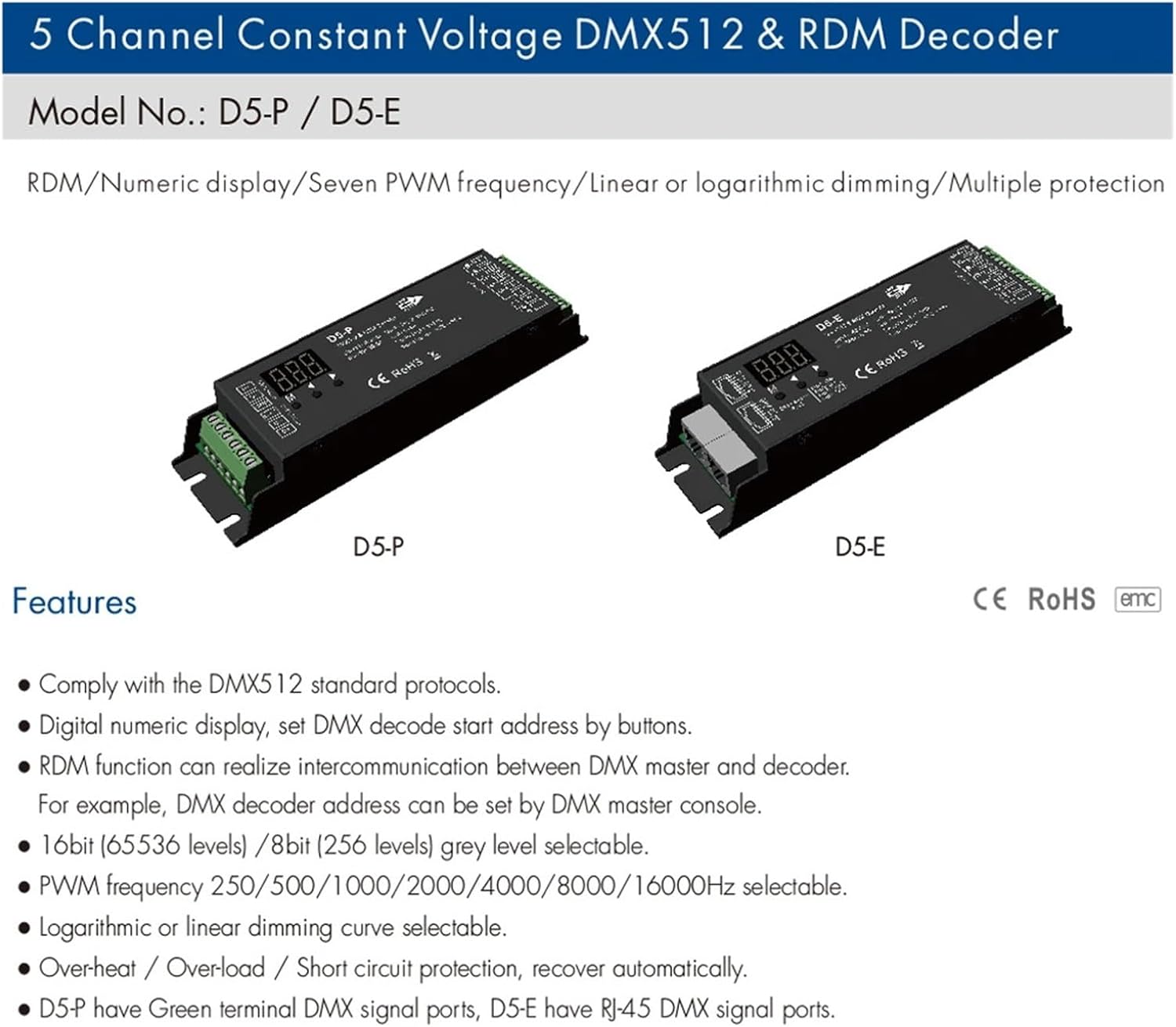

ControllersDimmersComply with DMX512 standard protocol.Digital digital display set the DMX decoding start address through buttons.The RDM function enables intercommunication between DMX hosts and decoders. For example the DMX decoder address can be set through the DMX host console.16bit (65536 levels)/8bit (256 levels) grayscale options are available.PWM frequency 250/500/1000/2000/4000/8000/16000Hz optional.Logarithmic or linear dimming curve available.Overheating/overload/short circuit protection automatic recovery.D5-P has a green terminal DMX signal port and D5-E has an RJ-45 DMX signal port.Input voltage: 12V-48VDCInput current: 20.5AOutput voltage: 5x(12-48)VDCOutput current: 5CH 4A/CHOutput power: 5x(48-192)WOutput type: constant voltage
- Controllers
- Dimmers
- Material: paper
| Item Weight | 12.3 ounces |
|---|---|
| Manufacturer | UVHAHSIXK |
| Item model number | UVHAHSIXK |
| Batteries required | No |
| Package Dimensions | 0.39 x 0.39 x 0.39 inches |
