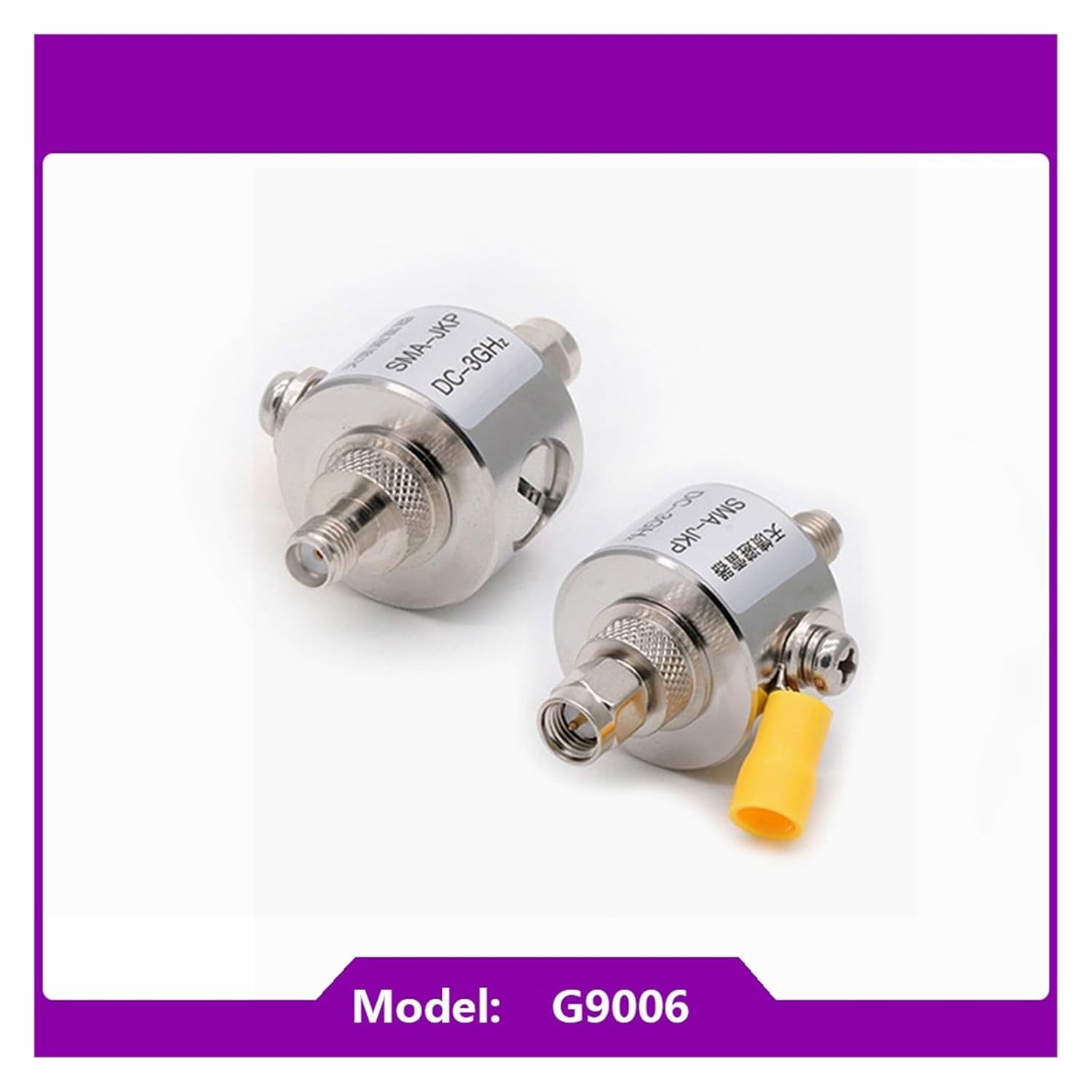

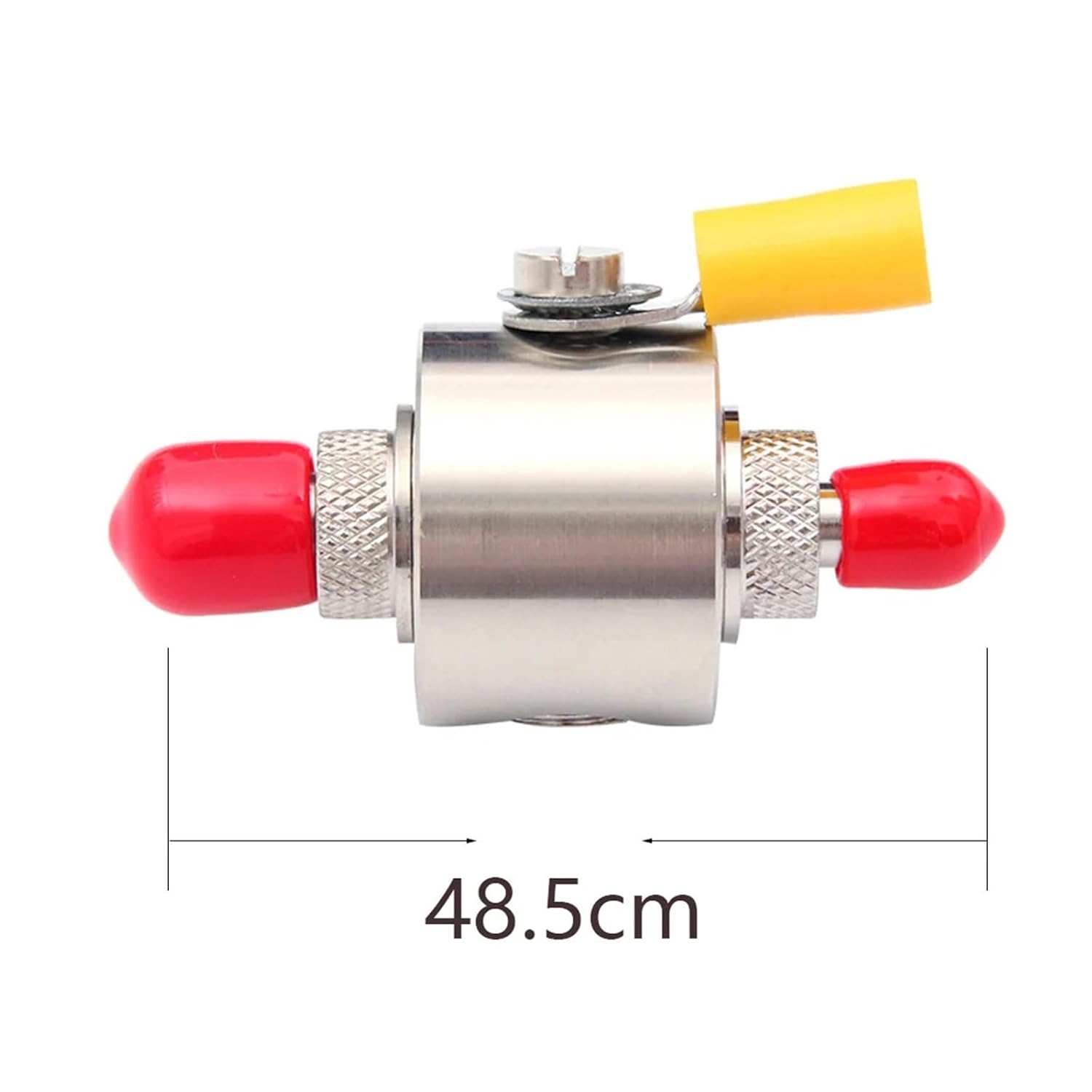

50-ohm SMA Male-to-Female coaxial Surge Arrester Surge Protection attenuator
Product details
| Management number | 211055323 | Release Date | 2026/04/04 | List Price | $24.55 | Model Number | 211055323 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Radio Frequency Attenuators50 Ohm SMA Male-to-Female Coaxial Surge Arrester Surge Protection Attenuator1. Name: Surge Arrester2. Voltage Standing Wave Ratio (VSWR): 1.153. Insertion loss: 0.25dB4. Frequency range: DC-3GHz5. Transmission power: up to 20KW6. Operating temperature: +80-45℃7. Waterproof rating: IP678. Grounding wire diameter: ≥629. Response time: less than 50 nanoseconds10. Residual voltage: 0.2VProduct Name: Surge ArresterProject type: SwitchFrequency range: DC-3GHzTransmission power: Maximum 20KWVoltage standing wave ratio: 1.15Insertion loss: 0.25dBFrequency range: DC-3 GHzOperating temperature: +8℃ to -4℃Waterproof rating: IP67Grounding wire diameter: 6 or moreResponse time: less than 50 nanosecondsResidual voltage: 0.2V
- Radio Frequency Attenuators
- 50-ohm SMA male-to-female coaxial surge arrester surge protection attenuator
| Item Weight | 1.76 ounces |
|---|---|
| Manufacturer | LGQWZMUG |
| Package Dimensions | 0.39 x 0.39 x 0.39 inches |
