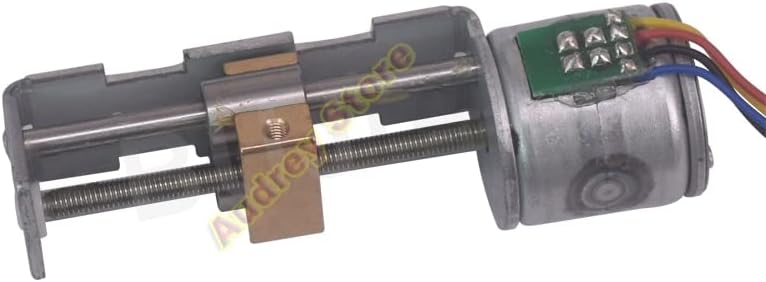

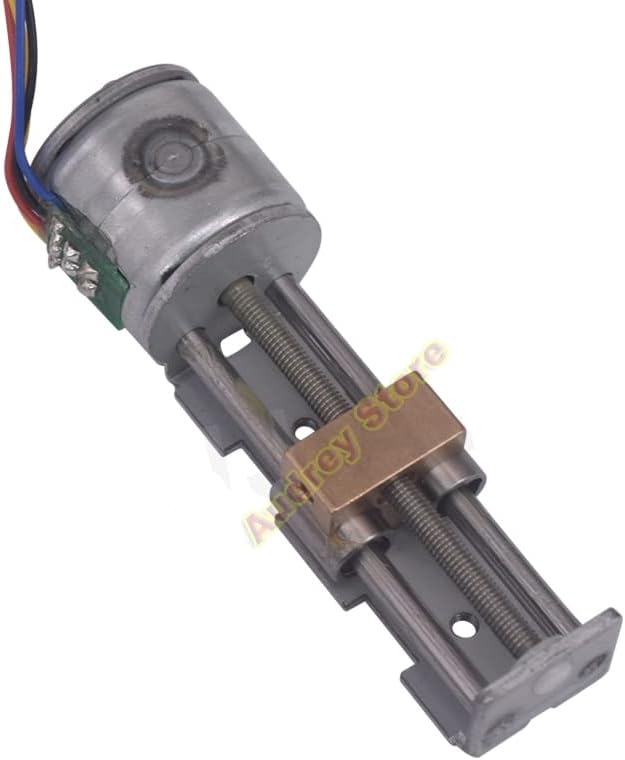

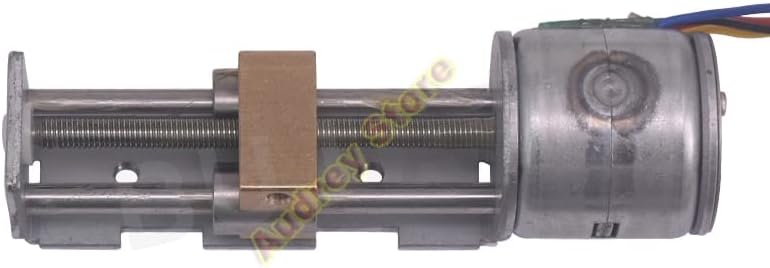

5V-9V Mini 20mm 2-phase 4-wire screw rod Linear bearing stepping slide Stepper motor
Product details
| Management number | 211204310 | Release Date | 2026/04/04 | List Price | $26.80 | Model Number | 211204310 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Motor type: 2-phase 4-wireDriving voltage: 5-9v / 200-600ma (the higher the voltage, the greater the force and the greater the heating)Screw length: 45mmSlide stroke: 34mmMotor diameter: 20 mmScrew rod diameter: 3 mmScrew pitch: 0.5mm (move 0.025mm in one step, subdivision drive can be used if it needs to be smaller)Step angle: 18 degreesPhase resistance: 21 ΩOverall size: 21 * 67mmBlue a + Black B + Red b-yellow a-Note that the stepper motor, directly connected to the power will not rotate, the need for stepper motor drive board and control board。NOTE:The motor is removed from the equipment,It looks like a new product,But some motors are scratched,If you mind, please don't buy, thank you.Item specifics:Certification: CCCOrigin: Mainland China
- Certification: CCC
- Origin: Mainland China
| Brand Name | Generic |
|---|---|
| Unit Count | 1.0 Count |
| Manufacturer | DAVITU |
