C-E-401 Pellet Stove Circuit Control Board Fit For Breckwell Pellet Stoves 1 RPM Auger Motor Systems 5-Speed Settings Digital Control Board Fit For Breckwell SP1000 Big E Replaces A-E-401 610326

Part Name: Circuit Control BoardBrand: GaimeilaLocation: SideProduct Material: Iron, Copper, Epoxy Resin FiberglassColor: BlackInclude Packing: 1 × Circuit Control BoardWarranty: 1 YearNote: To best determine compatibility, double check the spacing on your auger shaft. Auger shaft coils spaced 1" apart will indicate set up for a 4 RPM auger motor, auger shaft coils spaced 2" apart indicates set up for a 1 RPM auger motor. Replace Part Number: C-E-401 610326 A-E-401Fitment: Fit For Breckwell Pellet SP1000 Big EFit For Breckwell Pellet SP1002 Big E llFit For Breckwell Pellet P2000 Tahoe - Serial # 11780 to PresentFit For Breckwell Pellet P2000I Tahoe Insert - Serial # 22208 to PresentFit For Breckwell Pellet P23 Sonora -Serial # 7166 to PresentFit For Breckwell Pellet P23I Sonora Insert - Serial # 2243 to PresentFit For Breckwell Pellet P24 Blazer -Serial # 53664 to PresentFit For Breckwell Pellet P24I Blazer Insert -Serial # 53795 to PresentFit For Breckwell Pellet P2700 Mojave -Serial # 8445 to PresentAdvantage:Synchronized Auger and Fan Logic: The control logic is designed to synchronize the timing between the fuel auger motor and the fans. This mechanism helps maintain a steady fuel supply and airflow, resulting in a regular combustion cycle.Epoxy Resin Fiberglass Base: This control board utilizes an epoxy resin fiberglass material as its substrate. This material provides the physical support for the circuitry and offers necessary electrical insulation tailored for the pellet stove environment. Five-Speed Heat Output Control : This board provides five independent operational levels, allowing for the adjustment of heat output based on ambient heating needs. Users can manually toggle between settings to maintain the desired indoor temperature. Manual Feed and Trim Functions: The control panel includes buttons for manual feeding and trim adjustments, allowing for manual intervention in the combustion state when necessary. These features provide operational flexibility to suit various burning conditions. Iron and Copper Component Construction: The board integrates iron support elements and copper conductive pathways. The copper material maintains efficient current transmission, while the iron components reinforce overall structural framework and support secure connections.

• Over time, original circuit boards may degrade, affecting structural framework and leading to overheating or component failure. This results in decreased heating efficiency. Replacing with a new board supports precise thermal control and reliable operation. Our C-E-401 Control Board provides an ideal solution to restore optimal performance and support stable home operation.
• 【Compatibility Vehicles】Fits most models manufactured 2002 to current that use a 1 RPM Auger Motor. Serial numbers are provided by the factory and may be off slightly either way. If you have a lower serial number or a 4 RPM auger motor you most likely will require control board A-E-301
• 【Replace Part Number】C-E-401, A-E-401, 610326

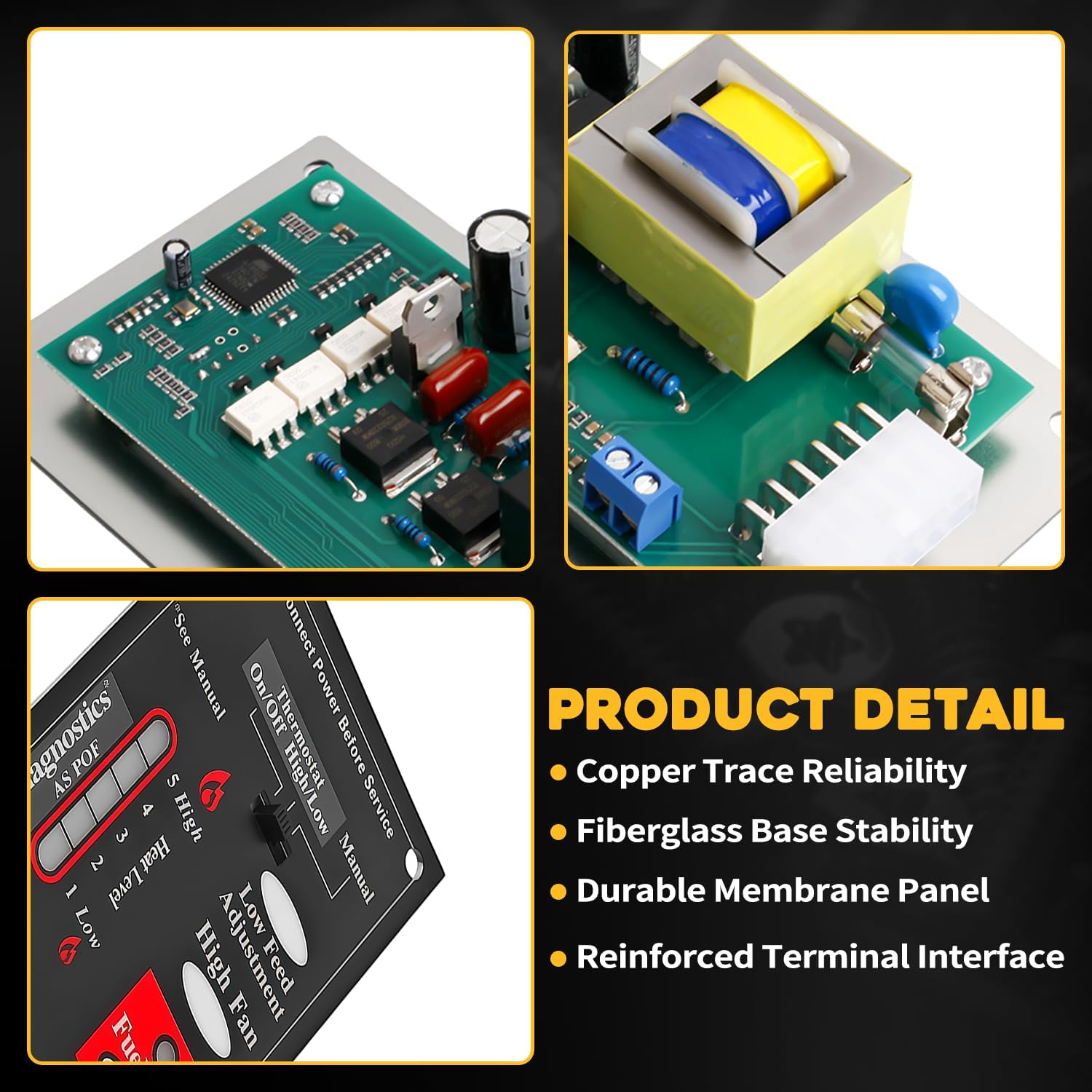

• 【Premium Material】This circuit control board features a robust epoxy resin fiberglass base integrated with precision-engineered iron and copper components. This material composition supports electrical conductivity and thermal stability, allowing the board to maintain its structural framework under the demanding heat conditions of a pellet stove. Its solid construction is designed for long-term electrical reliability and consistent performance

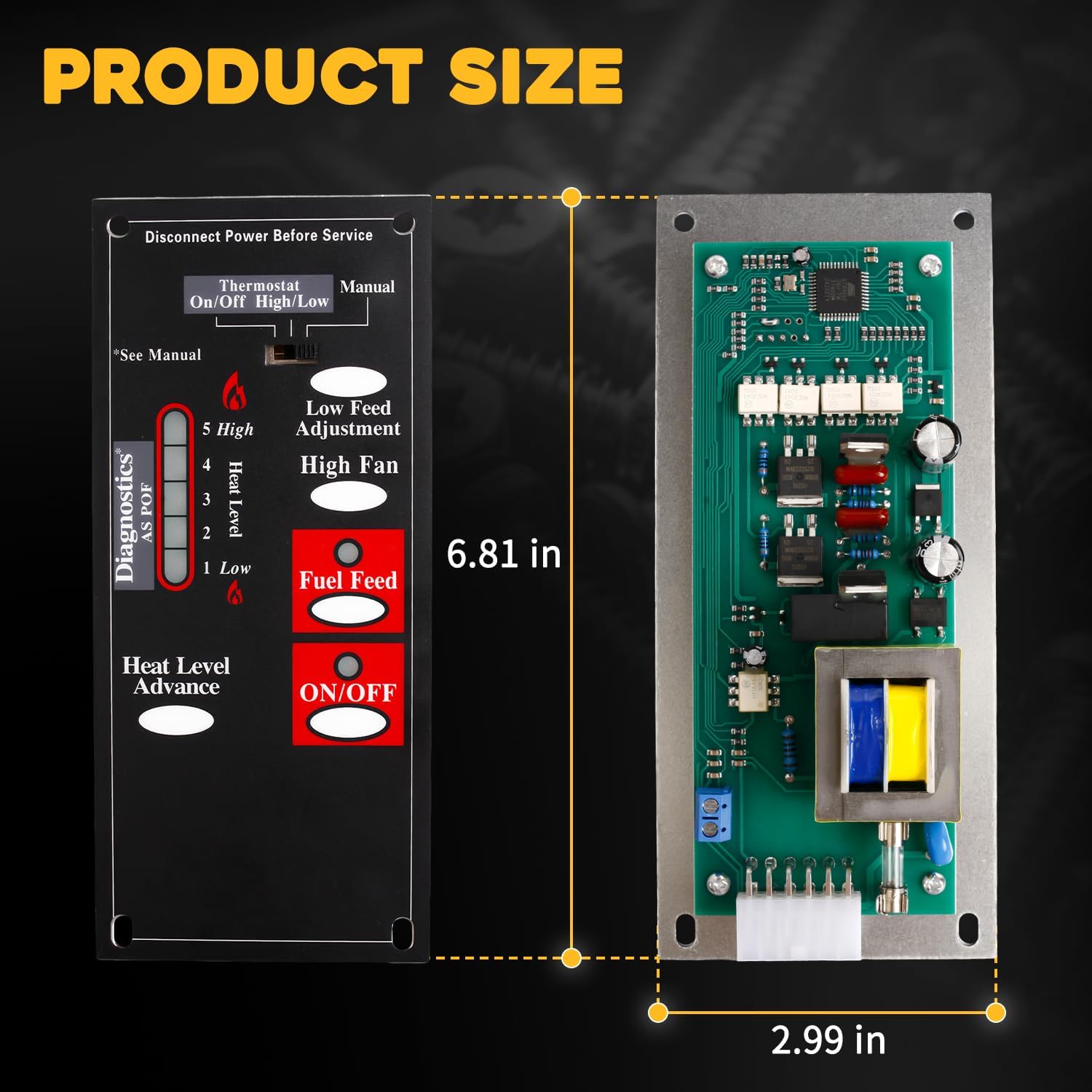

• 【Feature】This circuit control board features an intuitive digital display and a straightforward five-speed interface, allowing users to monitor and adjust stove settings with precision. The pre-programmed logic supports coordinated operation between the auger and fans, providing steady heat output and consistent fuel consumption. Its user-friendly design focuses on simplifying stove management and enhancing daily heating convenience
• 【Buy With Confidence】Purchase the Gaimeila Circuit Control Board with confidence, backed by a 1 year warranty. Should it malfunction, contact us for a prompt replacement. Enjoy excellent value as a reliable, cost-effective alternative to dealership pricing, with no compromise on quality or peace of mind
