Digital LCR Meter Touch Screen Inductance Capacitance Resistance Meter Tester Electric Bridge with 0.2% ESR Tester TFT-LCD 100Hz 120Hz 1kHz 10kHz 100kHz Frequency L C R Z Parameters

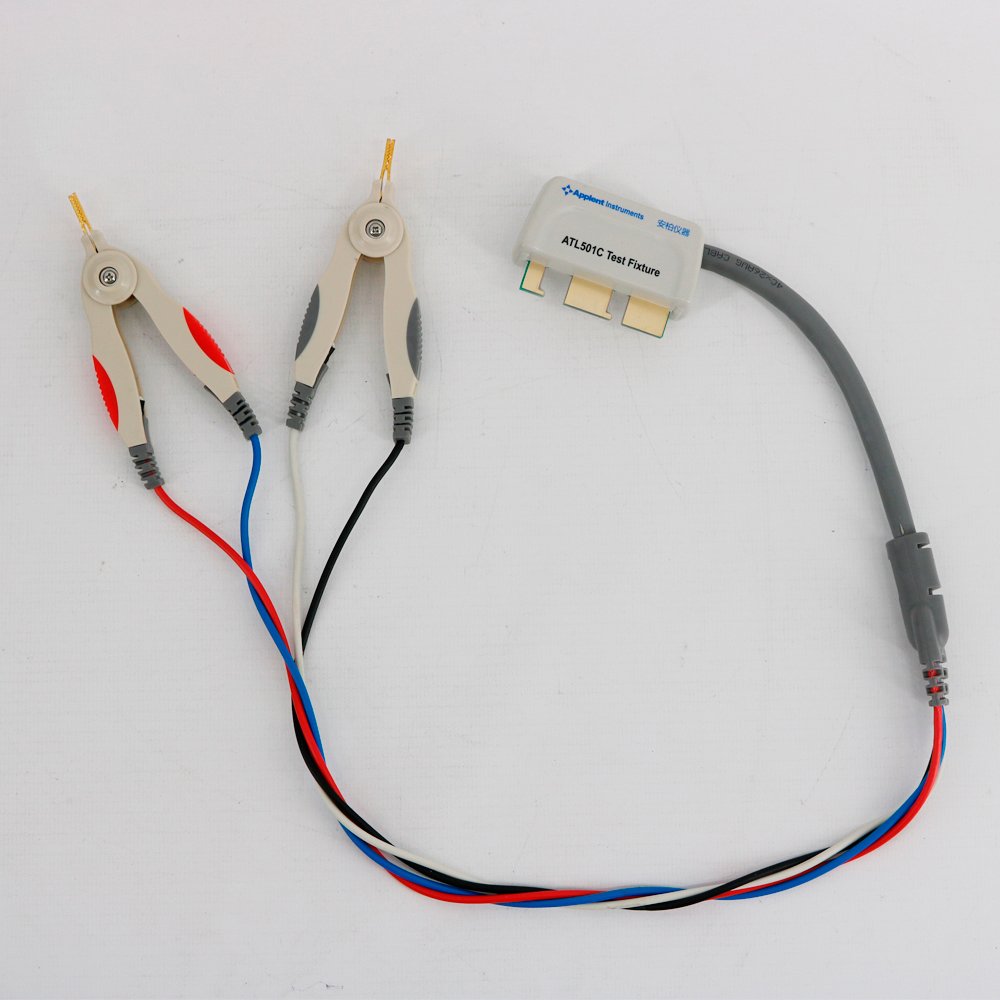

Specification Parameters:L,C,R,Z Monitor Parameters:D,Q,θ(deg),θ(rad)ESR Accuracy:0.20% Frequency:100Hz,120Hz,1kHz,10kHz,100kHz Display Range:L: 0.01μH-9999H D,Q: 0.0001 – 9999 C: 0.01pF - 99.99mf θ(deg):-179.99°-179.99° R,Z:0.0001Ω - 99.99MΩ θ(rad):-3.1416 – 3.1416 Source Resistance:100Ω Range:Automatic or Manual Display Max:Principle Parameter: 49999 Sub Parameter：49999 Signal Level:0.6Vrms Speed:4 times/second，1.5 times/second Comparator:1 sets, compare main parameters Adjustment:Open/short scan frequency reset for each range Interface: Build-in Mini-USB interface（virtual interface） Charging interface 2.8 inch true-color 16M color TFT-LCD display；touch screen（AT825A none）,data hold function；USB communication，compatible SCPI instruction set； switch in both English and Chinese；adjustable back light; automatic power off Input：100-240V~50/60Hz 0.35A Output：9V 1A DC Outside（mm）：90(Width)x190(Height)x31(Depth) 400g ATL501C four-terminal Kelvin test clip ATL909 DC adapter ATL805 Li-battery ﹡ATL105Mini-USB Communication cable ﹡ATS826 Data acquisition software

• ★●2.8 inch true-color 16M color TFT-LCD display；touch screen（AT825A none）,data hold function；USB communication，compatible SCPI instruction set； switch in both English and Chinese；adjustable back light; automatic power off
• ★●Open/short scan frequency reset for each range
• ★●1 sets, compare main parameters

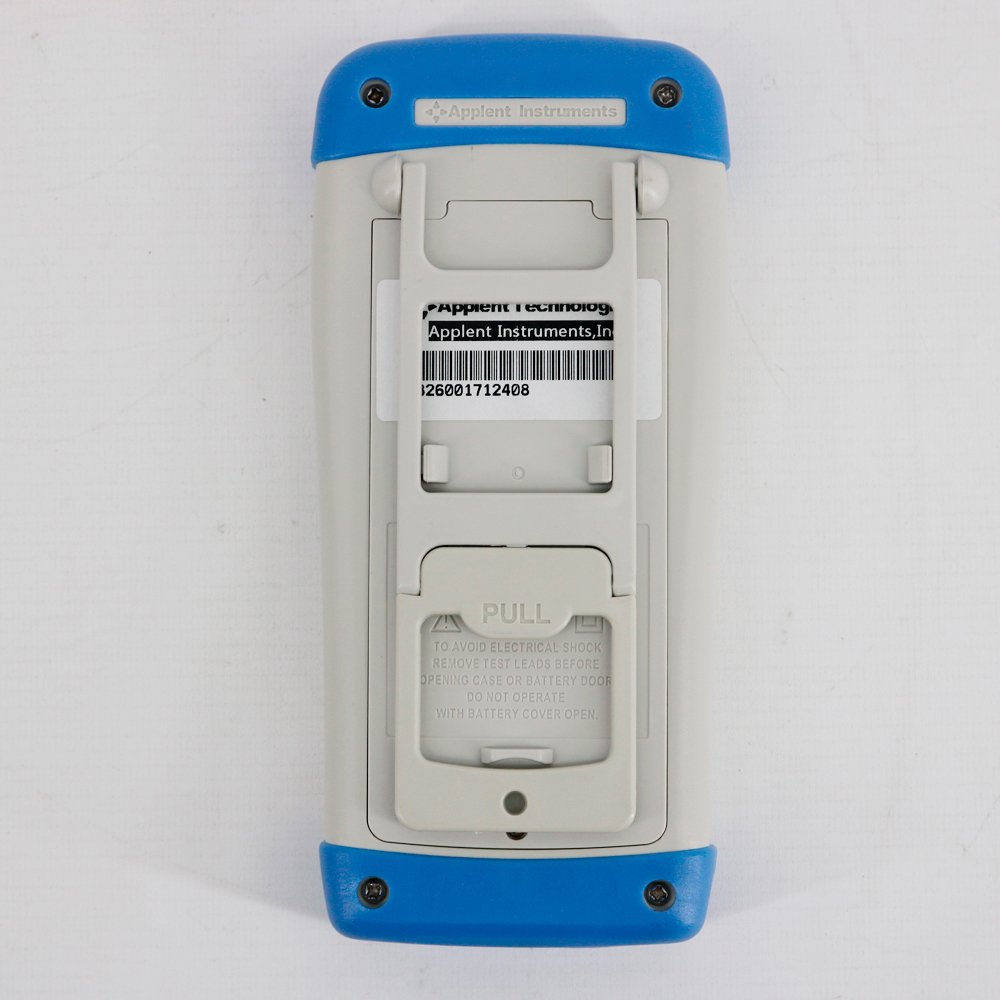

• ★AT826, 825, 824 series handheld LCR Digital electric bridge adopts high performance 32-bit ARM microprocessor. True-color TFT liquid crystal display, keypad and touch screen double control. Using Li- battery supply power. USB communication. Switch in both English and Chinese. AT826, 825 handheld LCR digital meter have the highest configuration.
• ★With the highest frequency of 100Khz, constant 100Ω source internal resistance, 0.6Vrms measurement voltage level, and 0.2% accuracy, make AT826, 825 have the excellent performance of both desktop instrument and portability of handheld.
