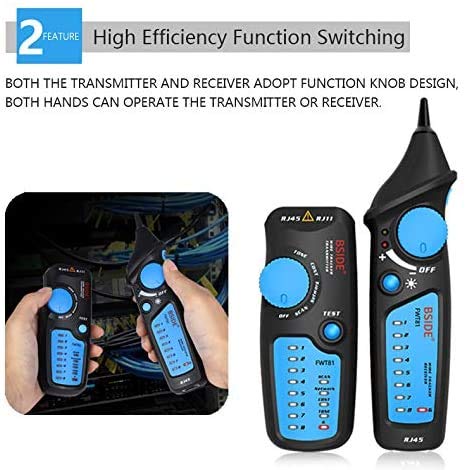

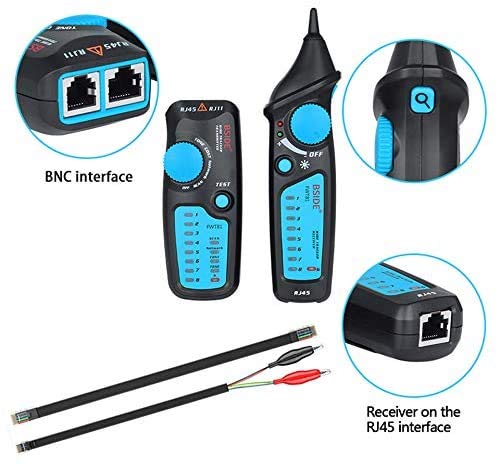

FWT81 Cable Tracker RJ45 RJ11 Telephone Wire Network LAN TV Electric Line Finder Tester with AVD06 Voltage Tester

General Technical Parameters:Operating temperature & relative humidity: 0-40, maximum 80% (non-condensing)Storage temperature & relative humidity: -10-50, maximum 80% (non-condensing)Altitude: less than 2000mAnti-explosion rating: IP40Distance of emitting signal: >300mSafety class: IEC61010-1 600V CAT III, pollution class II. Specifications:Product weight: 0.180 kgPackage weight: 0.270 kgProduct size: Receiver: 17.5x4.5x3.5 cm; Transmitter: 12x4.8x3.4 cmPackage size: 21.0 x 11.8 x 4.0 cmEmitter battery: 6F22/9V (not included)Receiver battery: 6F22/9V (not included)

• terminal. It can test other metal wires via an adapter.2. Network Cable Collation: It tests physical connection status of network cable, such as open circuit, short connection, miswire and reverse connection.3. Line Level, Positive and Negative Polarity Test: Use

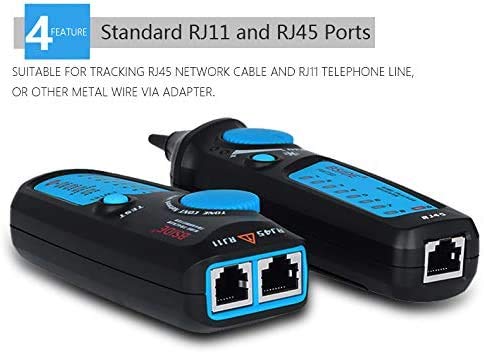

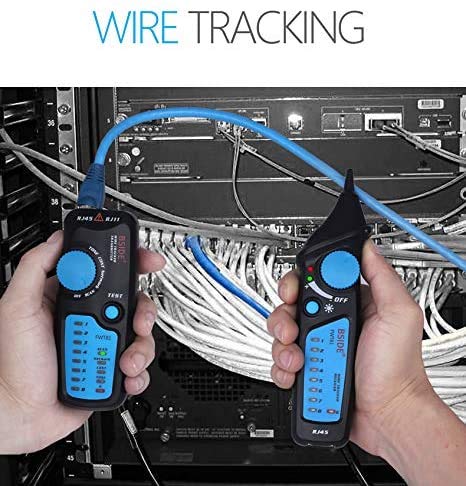

• This FWT81 wire tracker is anti-interference enhancement edition. It is a multi-functional handheld cable testing tool. It has a wide application with reinforced cable types and multiple functions. It is a necessary testing tool for telecommunication engineering, wiring engineering, and network maintenance. Functions:1. Wire Tracking: It can quickly find the required line pairs among numerous ones. It is adaptable to network cable RJ45 terminal, telephone line RJ11
• transmitter only to test line level, positive and negative polarity.4. Status of Telephone Line Test: Use the transmitter only to test the status of working telephone lines.5. Continuity Checking: This instrument can check the continuity of a circuit.6. Low Battery
• Capacity Indication.
