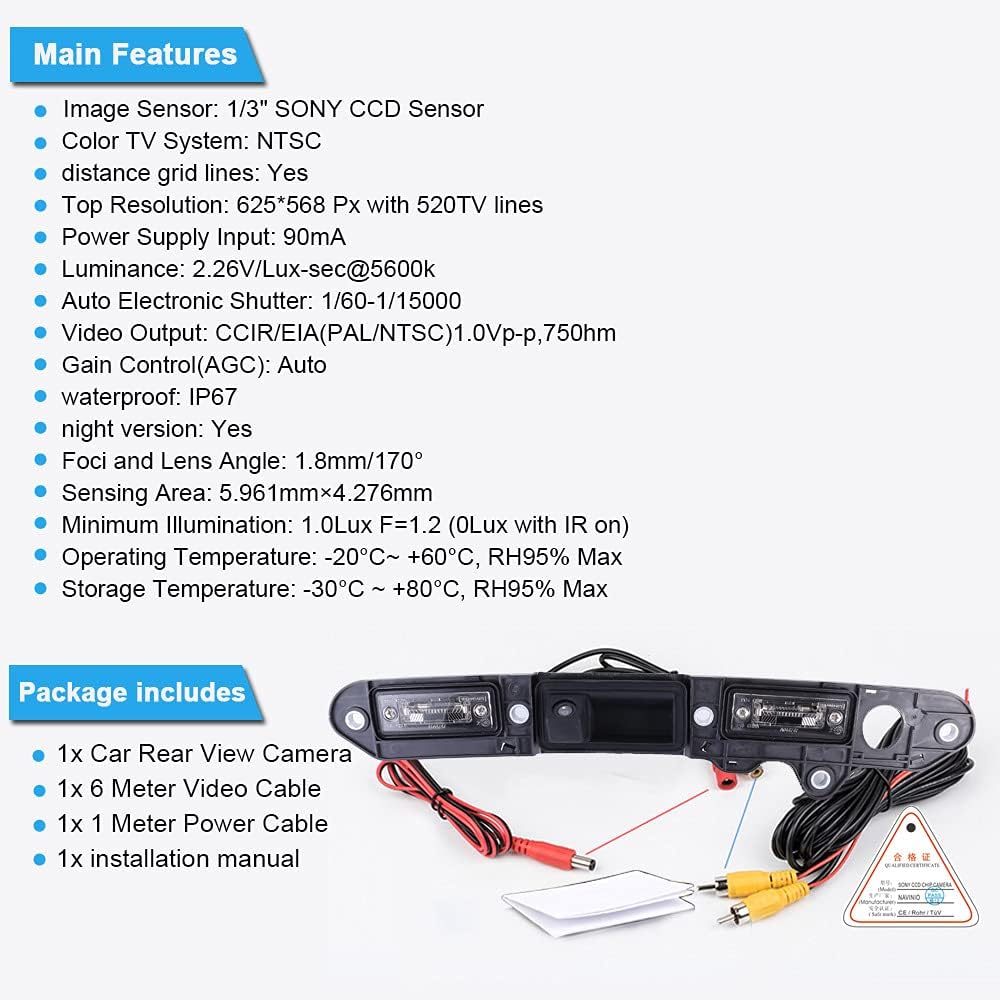

HD Night Vision Parking Aid Camera, Trunk Handle Waterproof Vehicle Backup Camera with Microswitch fit for VW Touran 1T GP 1T2/Golf Plus MK5/Jetta III V/Passat 3C B6 C3 Variant Wagon 2.0 TDI
Product details
| Management number | 211785003 | Release Date | 2026/04/04 | List Price | $1,422.30 | Model Number | 211785003 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Car Rear View Vehicle Backup Camera for:VW Golf Plus MK5 Bj 2005-2009VW Jetta III V Bj 2006-2010VW Touran 1T GP 1T2 Bj 2003-2010VW Passat 3C B6 C3 Variant Wagon 2.0 TDI Bj 2006-2008VW Jetta Bj 2006-2010Teilenummern TD827574A, 1TD 827 574A, 1T0827574C, 1T0827574L, 1TO 827 574 Product parameters:1. TV system: NTSC 2. Resolution: 628*658pixel /520 TV lines3. Lens angle: 150~ 170 degrees4. S/N ratio: More 48db(AGC-OFF)5. Video color: color night vision(night version)6. Video output: 1.0Vp-p,75Ω7. Image device: 1/3 inch color8. Sensing area: 5.78 x 4.19mm9. Sync. system: internal10.Voltage: DC 12V + -111.White balance: Auto12.Waterproof: IP6713.Effective pixel: 628 x 65814.Electronic shutter: 1/60-1/10000 second.15.Current Consumption: ≤150mA16.Current Consumption: : 90mA Max17.Temperature:-40°C to +60°C, RH95% Max.18.Minimum illumination:0.3Lux/F1.219.Operating Temperature:-30°C to +50°C, RH95%Package contents:1 x Rear view camera1 x Power cable1 x 6 meters video cable1 x Instruction manual
- 【Integrated CCD Sensor Chip 】 A new generation of powerful intelligent chips with high stability and fast image processing speed, which reproduce the real image to the maximum.
- 【150-170° Wide Angle Lens 】 with this 150-170° wide angle rear view camera, you can see everything behind your car clearly and park your car quickly and safely.
- 【Easy to install】 Connect the power cable of the camera to your reverse light, positive to reverse light+, negative to reverse light - or ground.
- ☆ Please test the rear cameras before final installation. You can use another device with RCA connection, e.g. a TV, to check if the camera works.
- ☆ The working principle of the vehicle rear view camera is very simple. It will transmit the video signal to your monitor when it is powered. If your monitor can not display the image, please make sure you have successfully powered the camera, and also make sure the monitor is receiving power and the video signal.
| Lens | Wide Angle |
|---|---|
| Brand | Dynavsal |
| Voltage | 12 Volts |
| Lux rating | 0.3 |
| Screen Size | 0.25 Inches |
| Manufacturer | dynavsal |
| Connector Type | RCA |
| Real Angle of View | 170 Degrees |
| Video Capture Resolution | 720p |
| Item Dimensions L x W x H | 7.87"L x 0.78"W x 4.33"H |
| Optical Sensor Technology | CCD |
| Effective Still Resolution | 0.36 MP |
