H/D SDI AV USB Audio LVDs Controller Board for 17inch M170ETN01.1 M170ETN01.3 19inch M190ETN01.0 1280x1024 LCD Display

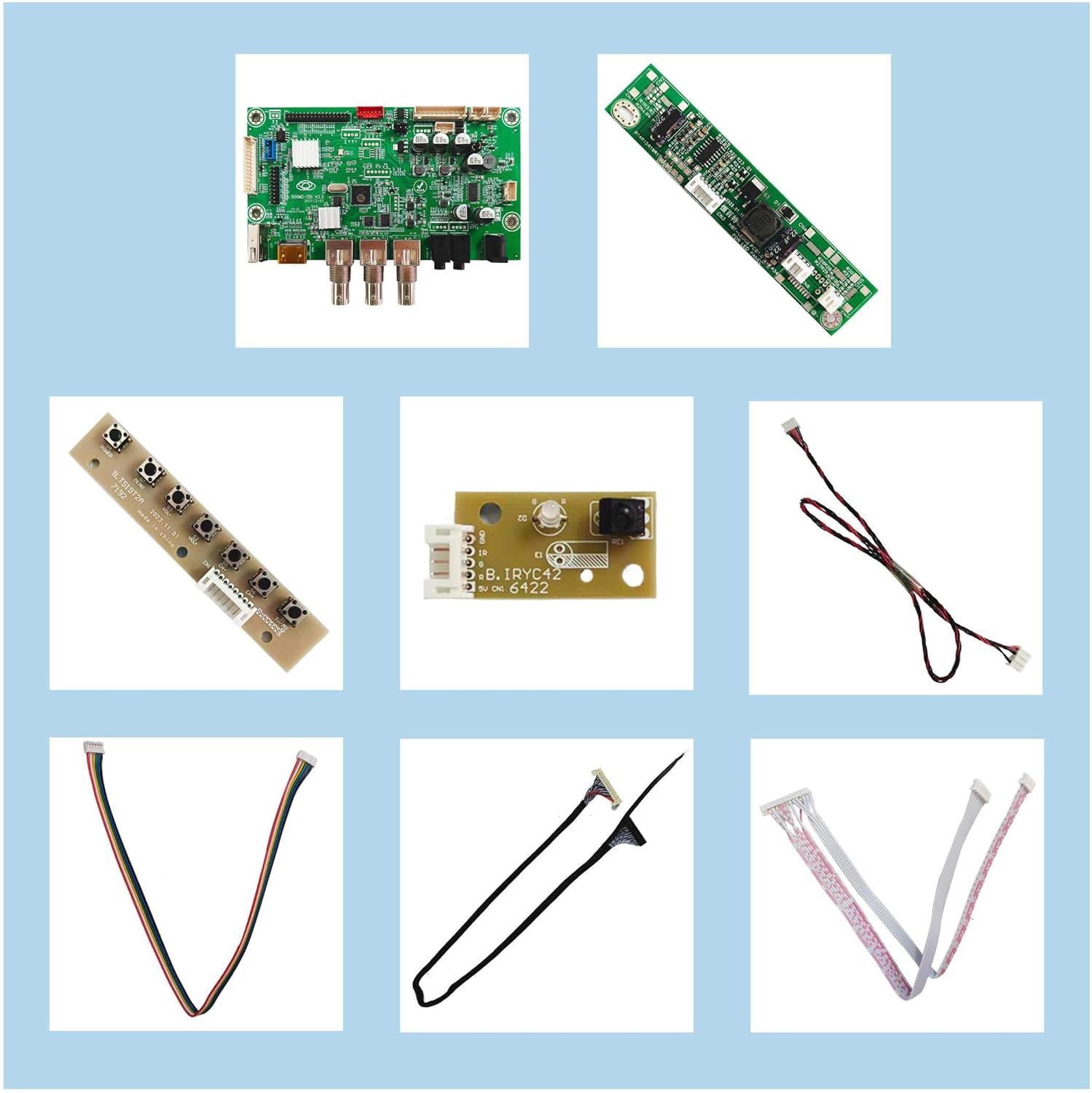

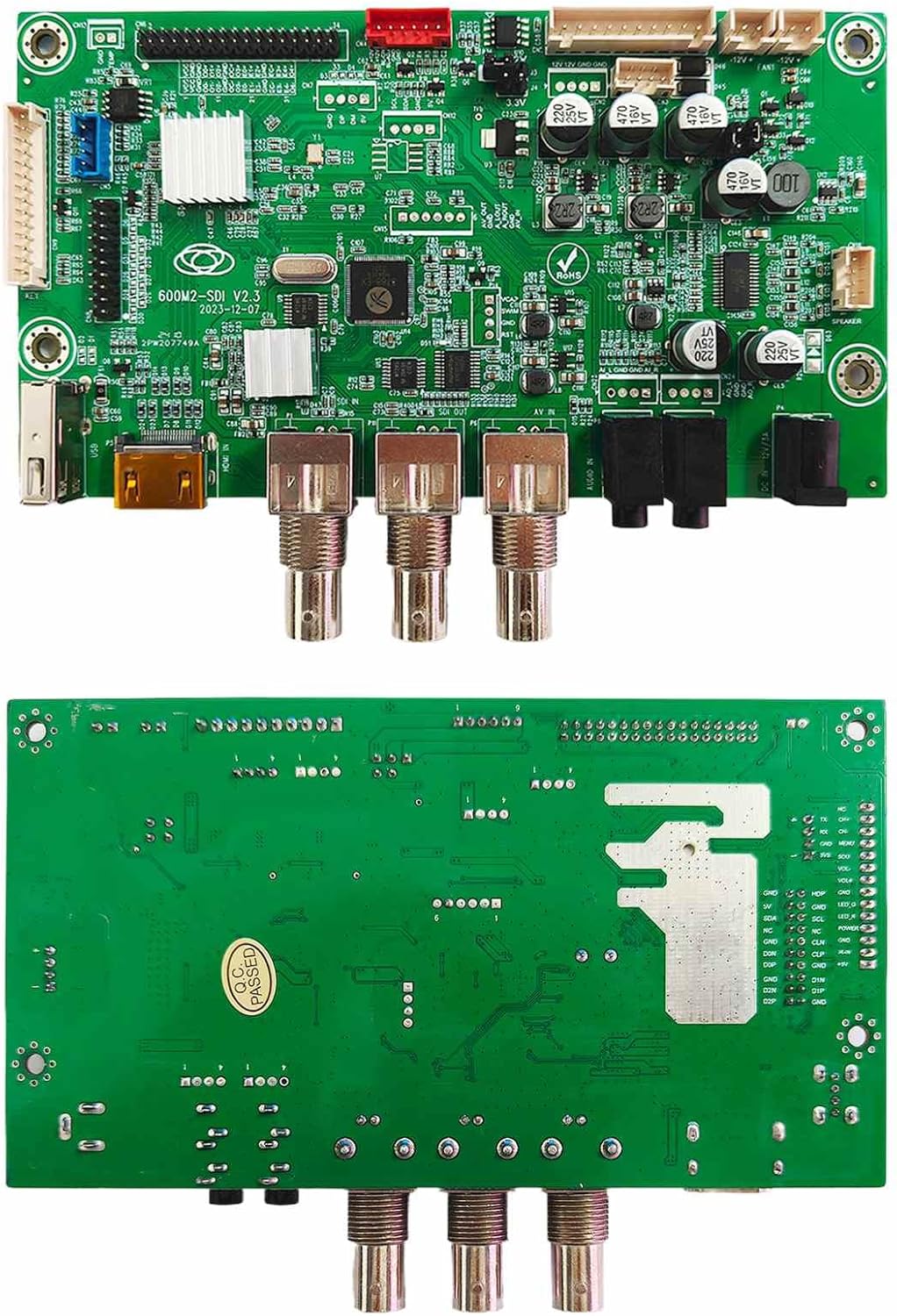

LCD Controller Board:H/D SDI AV USB AUDIO LCD Board Work for LVDS Interface LCD ScreenInput Power Adapter: 12Vdc More than 2A.Come In Standby Model When Not Input SignalStandby Model <1WVideo Input: H/D SDI AV USBAudio Input: H/DI AV（BNC)H/D Input：480P/576P/720P/50/60Hz 1080P/24/25/30/50/60Hz 4K@30HzSDI：H/D-SDI、3G-SDI 270Mb/s 1.485Gb/s 2.97Gb/s 75ohmSDI Inupt：720P/50Hz 720P/60Hz 1080i/50Hz 1080i/60Hz 1080P/24/25/30/50/60HzSDI Output：720P/50Hz 720P/60Hz 1080i/50Hz 1080i/60Hz 1080P/24/25/30/50/60HzAV Input：480i /P/60Hz 576i/P /50HzUSB: Movie/Picture/Music/TextAudio Output: Earphone Speaker ConnectorOSD: Brightness Contrast Auto Language And So OnLanguage: English French German Spanish Italian And So OnBoard Size: 150mm x 82.5mm x 18mmCompatible Work With:17inch 1280x1024 M170ETN01.1 M170ETN01.319inch 1280x1024 M190ETN01.0 Packing list :1× H/D+SDI +AV1+USB LCD Controller Board VS600M2-SDI V2.31× LVDS Cable1× Backlight Cable1× Keyboard With Cable

• 【LCD Controller Board】 Video Input: H/D SDI AV USB,Audio Input: H/DI AV（BNC)，USB: Movie/Picture/Music/Text,Audio Output: Earphone Speaker ConnectorPlease use in insulated environment.
• 【Input Power Supply】12V DC more than 2A ,Port size :5.5x2.1mm, pls prepare power adapter by yourself.
• 【Compatible Screen models 】17inch 1280x1024 M170ETN01.1 M170ETN01.3, 19inch 1280x1024 M190ETN01.0 display
• 【Plug and play】 Connecting the cables and ports according to link picture details ,Power on ,Button light become green,Then enter into signal cable,the screen can work well.
• 【Important】Before purchasing, Pls confirm your Display model firstly, which mark at the back side of the panel label,need to open the rear case to check.
