JRready ST5228 Extractor Tools,Removal Tools Kit for JST/AMP .062" /Molex .062" & .093” Pin and Socket Connectors Tube Type Pin Extractor Tool kit+ST6475 .093"&.062" Pin Connect Kit

JRready ST5228 Extractor Tools,Removal Tools Kit for JST/AMP .062" /Molex .062" & .093” Pin and Socket Connectors Tube Type Pin Extractor Tool kit+ST6475 .093"&.062" Pin Connect Kit

• 【Extraction Tools Kits Size】DRK-T210250 (ID: 2.1mm/0.082", OD: 2.5mm/0.098"); DRK-T310360 (ID:3.1mm/0.12", OD: 3.6mm/0.14"); DRK-T220290 (ID: 2.2mm/0.086", OD: 2.9mm/0.11"); DRK-T270320 (ID: 2.7mm/0.1", OD: 3.2mm/0.125"); DRK-T275320 (ID: 2.75mm/0.108", OD: 3.2mm/0.125"); JRconDRK-T320360 is suitable for Molex .093” connector. JRconDRK-T220260 is suitable for Molex .062” connector.

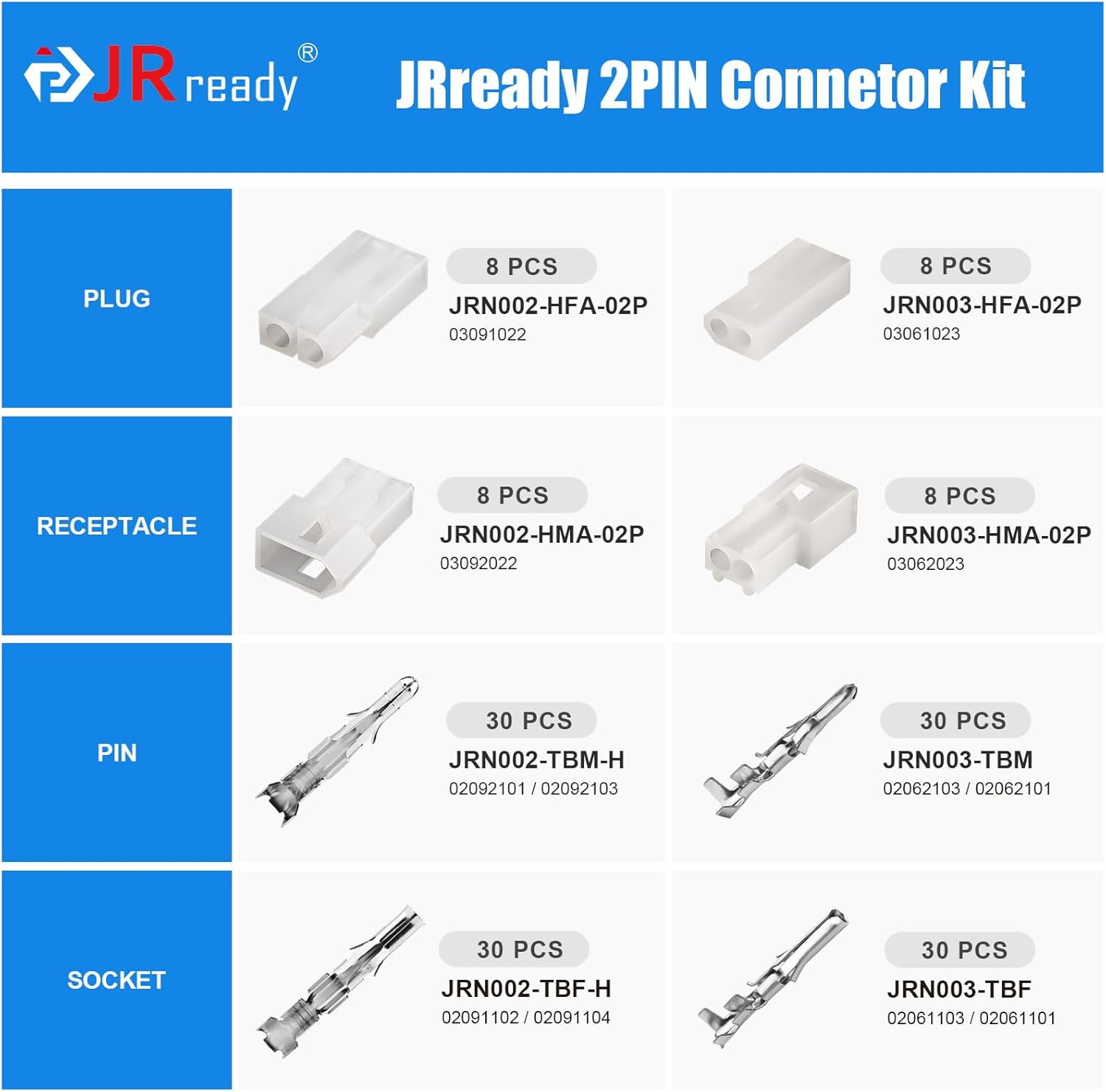

• 【JRready Housing Connector】 The housing connectors is made of PA66 material, rated voltage is 250V AC/DC, operating temperature -40℃ to +105℃, the flame retardant grade is UL94-V2,. JRN002 connector standard .093 series connector-5.03MM pitch, JRN003 for .063 series connector-3.68MM pitch.
• 【Terminal Contact】 The terminals are made of tin-plated brass for better electrical conductivity, oxidation and corrosion resistance. Dual-locking tangs help prevent backing out ensuring a strong electrical connection. Opening design reduces the insertior force and improves the insertion and extraction durability more than 100 times.JRN002 Pin 2.36mm diameter, Wire range 14-20 AWG(0.5mm²to 2mm²), rated current 12A. JRN003 Pin 1.57mm diameter, wire range 18-22AWG(0.32mm² to 0.8mm²), rated current
• 【Compatible with MOLEX Models】 Molex Standard .062" Series Connectors: 03061023 / 03062023, Contact Pins: 02062103 / 02062101, 02061103 / 02061101; Molex Standard .093" Series Connectors: 03091022 / 03092022, Contacts: 02092101 / 02092103, 02091102/ 02091104
• 【Application】 Provides a cost-effective solution for wire-to-wire applications while offering flexible design options for medium power applications. This series of connectors can be used in household appliances, electrical maintenance, consumer electronics to name a few.
