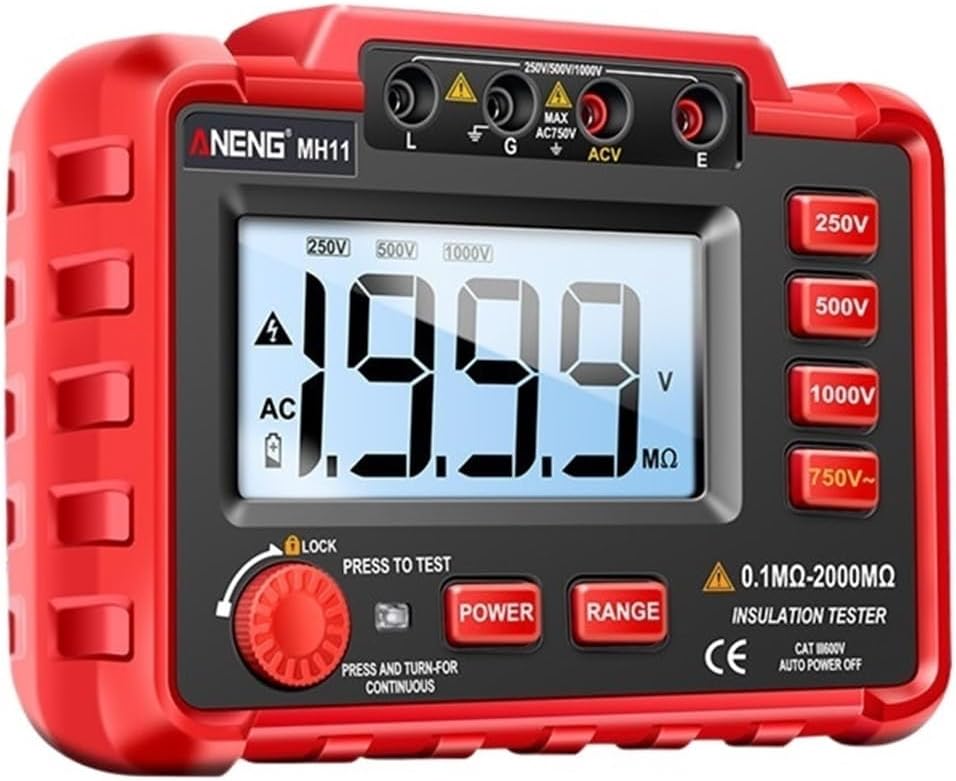

MH11 Megohmmeter Digital Meters 250/500/1000V Insulation Earthing Resistance Tester DC Voltage Multimeter Test Tools(50R)

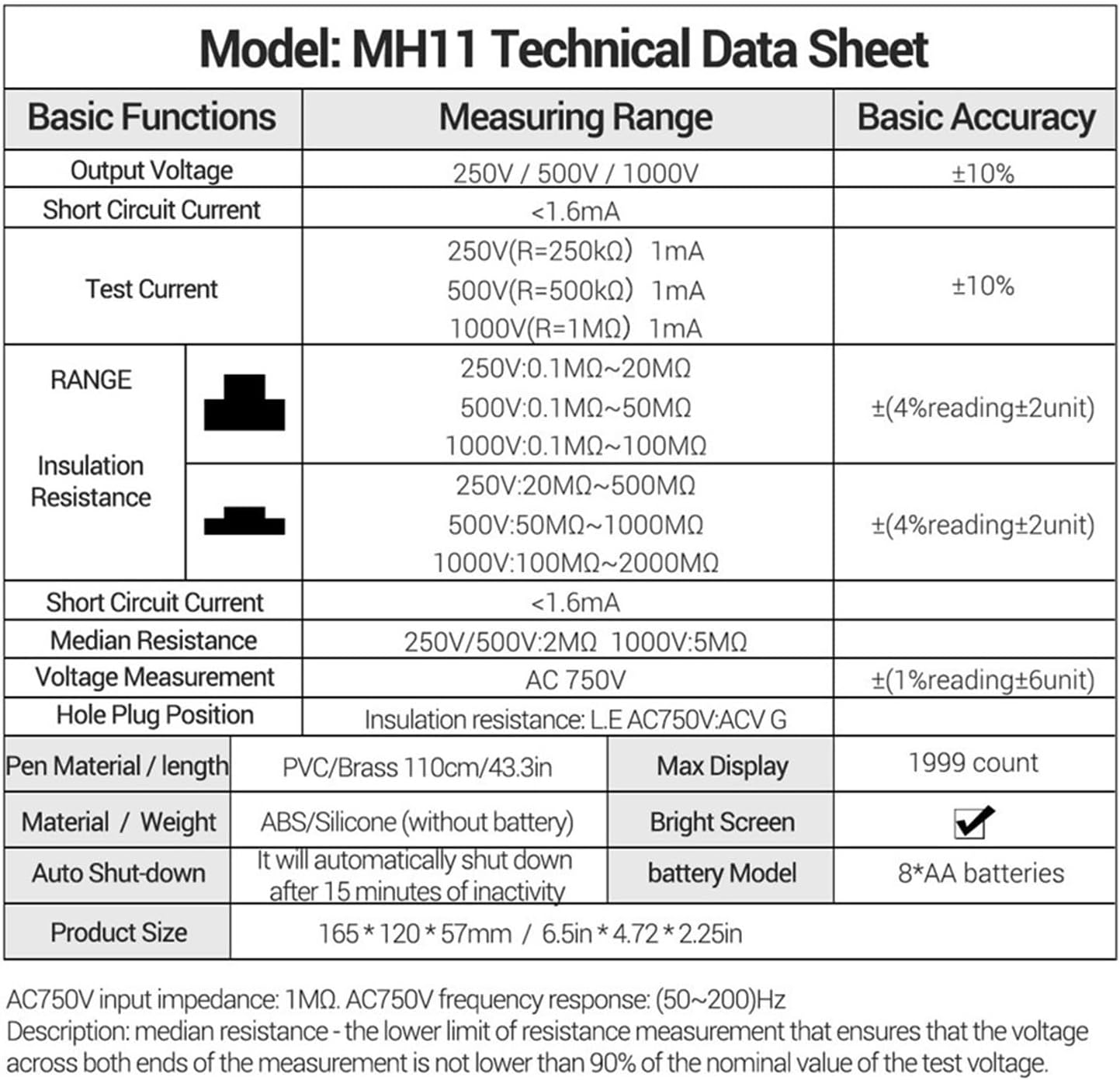

Multimeters & AnalyzersMH11Digital Megohmmeter Meters250/500/1000V Insulation Earth Resistance Meters Tester cable Voltmeter Meter(NO including battery)Overview:Insulation series digital tester which adopts low loss high ratio of inductance energy storage DC voltage converter can change 12V voltage into 250V/500V/1000V DC voltage. It uses digital LCR bridge for resistance measurement and the insulation resistance test. It has many advantages such as light, wide measuring range, backlight display, test lock and other function. It can also be used for electricity measurement with great advanced appearance, stable performance. Based on straps design, you can operate with both hands. It can applied in motors, cable, mechanical and electrical equipment, telecommunications equipment, power facilities and other insulation resistance testing areas.Technical Parameters:basic functionsmeasring rangebasic accuracyoutput voltage250V/500V/1000V±10%test current250V(R=250k)1mA±10%500V(R=500k)1mA1000V(R=1M)1mARANGEInsulation resistance250V:0.1M-20M± (4% ± 2 )500V:0.1M-50M1000V:0.1M-100M250V:20M-500M± (4% ± 2 )500V:50M-1000M1000V:100M-2000Mshort-circuit current<;1.6mAMedian resistance250V/500V:2M1000V:5MACV750V± (1% + 6 )Package inclued:1* Resistance megohmmeter1* Aligator clip1* Test lead1* Manual1* Packing box==========Dimensions : 165X120X57MMOperating Temperature : 0~40Testing Voltage : 250V/500V/1000VMeasuring Range : 0.1M-2000MModel Number : MH11Display Type : Digital OnlyDIY Supplies : ELECTRICAL
