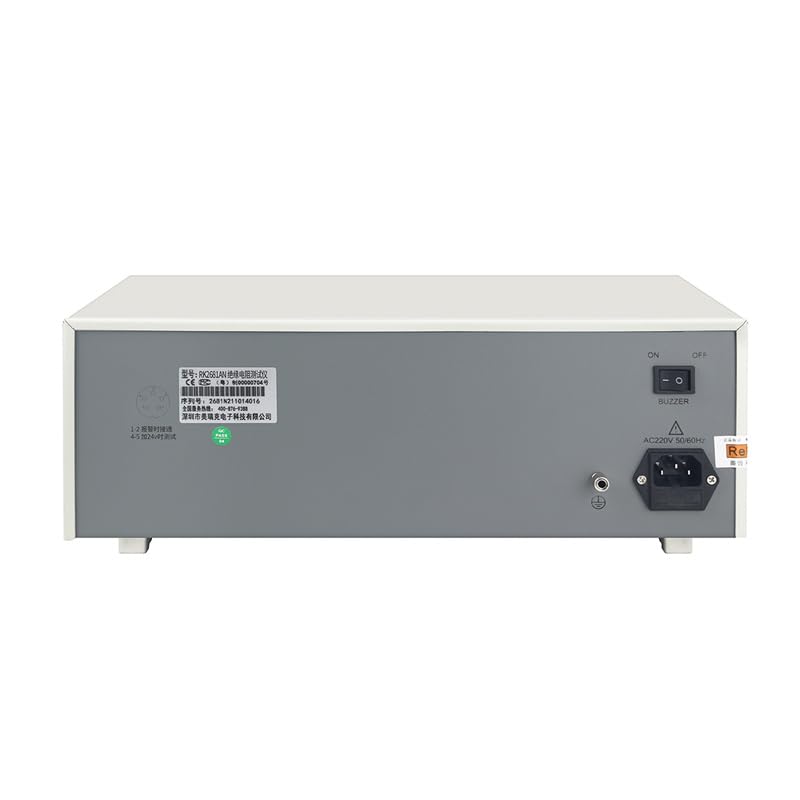

RK2681AN Insulation Resistance Tester Resistance Range 100kΩ-10TΩ, Voltage 1000V Pointer with Standard PLC Interface

RK2682N insulation resistance tester series is designed in accordance with IEC, BS, UL and other international and domestic safety standards, the test voltage is divided into DC 500V and DC1000V two grades, insulation resistance from 0.5MΩ ~ 2000MΩ is divided into four grades (2MΩ, 20MΩ, 200MΩ and 2000MΩ)

• Test resistance:100KΩ~10TΩ;Test accuracy R<1GΩ:±3% reading +0.5 cells,R≥1GΩ:±5% reading +0.5 cells,R≥100GΩ :±10% reading +0.5 cells
• Output voltage (V):10/50/100/250/500/1000;Voltage accuracy:±2%;Control mode:Analog circuit
• Range mode:Manual operation;Measuring speed:Resistive components :<0.5 seconds, capacitive components :0.5~10 seconds
• Working environment:0℃~40℃,≤85%RH;Power requirements:220V±10%,50Hz/60Hz±5%
• Easy to operate and reliable,with automatic voltage regulation function,fast test speed, fast stability, safe and durable
