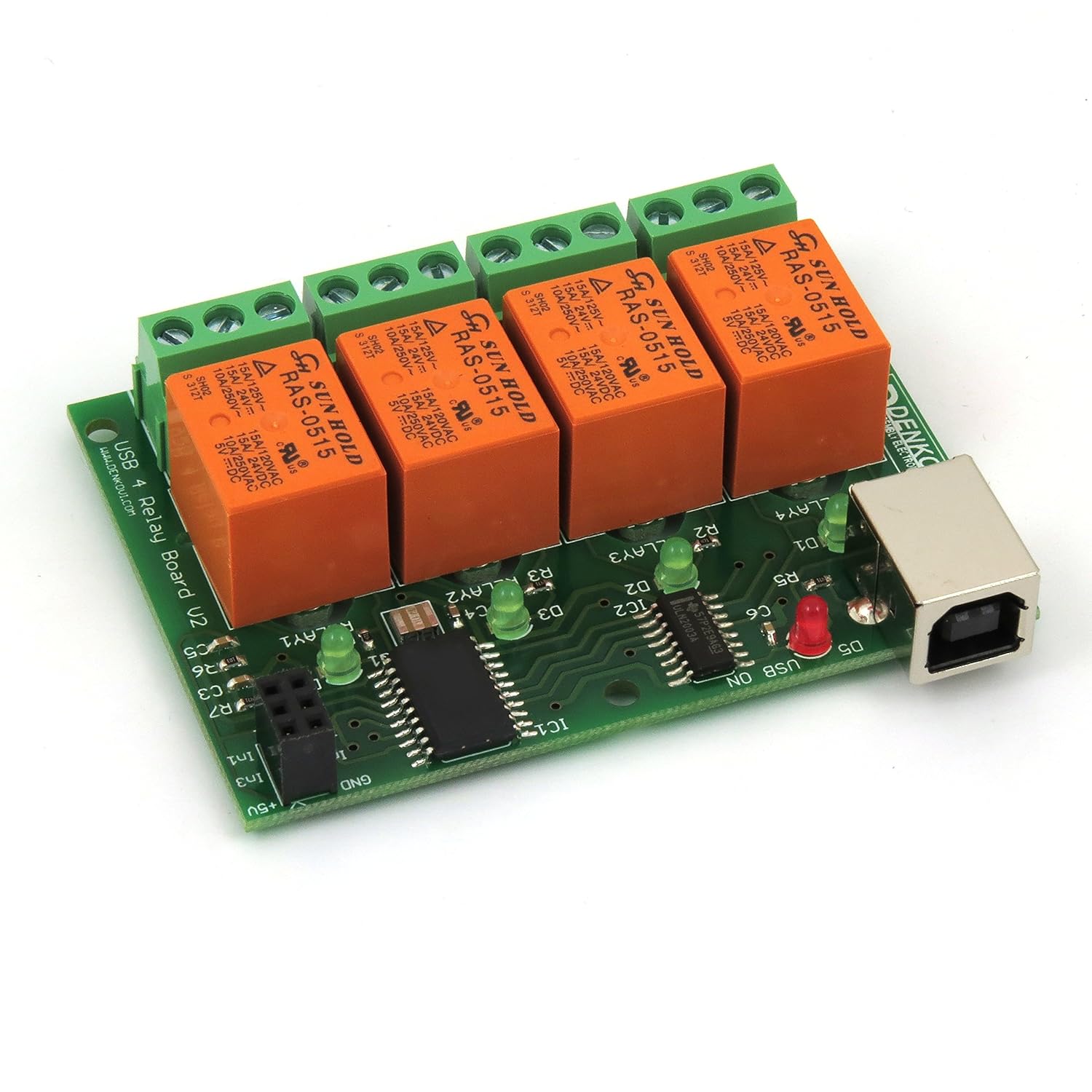

USB 4 Channels (10A) Relay Module, for Home Automation - v2
Product details
| Management number | 211059046 | Release Date | 2026/04/04 | List Price | $18.00 | Model Number | 211059046 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Description The second version of our popular USB 4 Relay Board with several improvements. It comes with MCP2200 chipset, 4 SPDT Relays each rated with up to 10A, relays states saving in internal EEPROM and improved USB interference resistance. Suitable for home automation applications, hobby projects, industrial automation. The free DRM software allows to control relays manually, create timers (weekly and calendar) and multivibrators, use date and time for alarms or control from command line. We provide various software examples: VB.NET, C#.NET, C++.NET, LabVIEW 2011. Features: * 4 Digital I/O lines * Power supply: from USB port * Significant resistance against USB interference * Keeps the relay states in internal EEPROM on every toggle * Power led * Relay leds * Size: 77mm x 56mm x 17mm * Temp Range: -40 to +80 °C * PCB parameters: Extra PCB openings for better voltage isolation and doubled high voltage tracks * Footprint is fully compatible with our previous USB 4 Relay Board with FT245RL for easy integration or replacement * Supported by DRM software (Windows, Linux, Raspbian): Yes * Supported by Denkovi Command line tool (Windows, Linux, Raspbian): Yes Documentation:http://denkovi.com/Documents/USB4v2/current-version/UserManual.pdf Denkovi command line tool: http://denkovi.com/denkovi-relay-command-line-tool Denkovi Relay Manager: http://denkovi.com/drm-software For software examples: please contact with us.
- High quality
- 4 SPDT Relays RAS-05-15 (10A / 250VAC, 15A / 120VAC, 15A / 24VDC)
- Power supply: from USB port (consumption - 400 mA, when all relays are on)
- Windows/Linux free software
- Software examples: VB.NET, Labview, C#.NET, C++.NET
| Wattage | 2 watts |
|---|---|
| Brand Name | Denkovi Assembly Electronics Ltd |
| Item Weight | 0.01 Ounces |
| Part Number | DAE-CB/Ro4/RAS-USB |
| Coil Voltage | 24 Volts |
| Contact Type | Spdt |
| Manufacturer | Denkovi Assembly Electronics Ltd |
| Mounting Type | PCB Mount |
| Connector Type | Usb |
| Current Rating | 10 Amps |
| Operation Mode | Automatic |
| Contact Material | Silver Alloy |
| Specification Met | Ma |
| Contact Current Rating | 10 Amps |
| Maximum Switching Current | 10 Amps |
| Minimum Switching Voltage | 250 Volts (AC) |
